Does the length of cable affect solar panels?

Did you know the length of your Solar Cable can affect how well your solar panels work? Longer cables create more resistance, which wastes energy. This means your panels might not deliver as much power as they should. Choosing the right cable and installing it properly helps you keep your system efficient.

Key Takeaways

• Longer cables make electricity harder to flow, wasting energy. Use short cables to get the most power from solar panels.
• Pick thicker cables for better performance. Thick cables lose less energy and stay cooler.
• Choose copper cables over aluminum ones. Copper works better and lasts longer for solar systems.

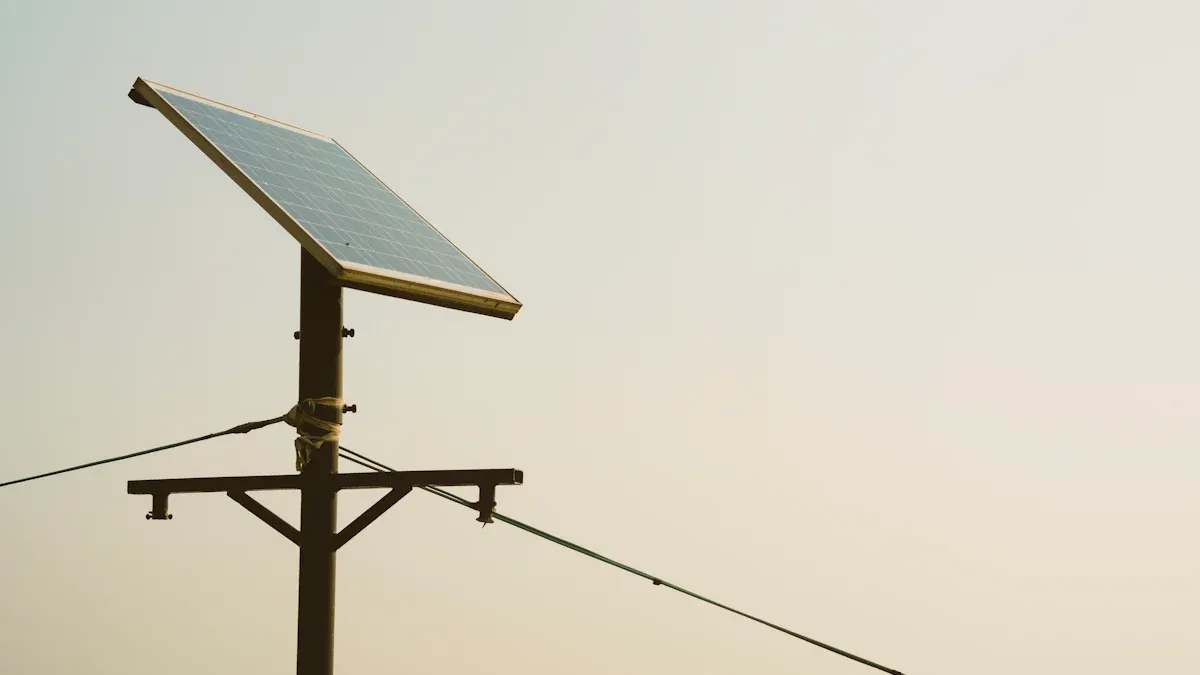

How Cable Length Impacts Solar Panel Efficiency

Resistance and Energy Loss

Have you ever wondered why longer cables can cause problems in your solar power system? It all comes down to resistance. Every cable has some level of resistance, which increases as the cable gets longer. This resistance turns some of the electricity into heat, leading to energy loss.

Think of it like water flowing through a pipe. A longer pipe creates more friction, slowing the water down. Similarly, a longer cable makes it harder for electricity to flow efficiently. This means your solar panels might not deliver as much power as they could. Choosing the right solar cable can help reduce this resistance and keep energy loss to a minimum.

Voltage Drop and Power Output

Voltage drop is another issue caused by long cables. When electricity travels through a cable, some of the voltage gets "lost" along the way. The longer the cable, the more voltage you lose. This drop can reduce the power output of your solar panels, especially if the cable isn't thick enough to handle the current.

For example, if your solar panels produce 12 volts, but the voltage drops to 10 volts by the time it reaches your inverter, you're losing valuable energy. To avoid this, you need to use the right type of solar cable and keep the length as short as possible.

The Role of Solar Cable in Performance

The solar cable you choose plays a big role in how well your system performs. High-quality cables are designed to handle the current from your solar panels without overheating or losing too much energy. They also have better insulation, which protects them from weather and wear over time.

When selecting a solar cable, look for one that's thick enough to carry the current and made from durable materials like copper. Copper cables are more efficient than aluminum ones because they have lower resistance. By investing in the right cable, you can ensure your solar panels work at their best.

Factors to Consider When Choosing Solar Cables

Cable Gauge and Thickness

The thickness of your solar cable matters more than you might think. Thicker cables can carry more current with less resistance, which means less energy gets wasted. If your cable is too thin, it struggles to handle the electricity from your solar panels, leading to overheating and energy loss.

When choosing a cable, look for one with the right gauge for your system. A lower gauge number means a thicker cable. For example, a 10-gauge cable is thicker and better suited for high-current systems than a 14-gauge cable.

Tip: Always check the specifications of your solar panels and inverter to match the cable gauge to your system's needs.

Material: Copper vs. Aluminum

The material of your solar cable plays a big role in its efficiency. Copper cables are the gold standard for solar systems. They have lower resistance, which means they lose less energy during transmission. Copper is also more durable and handles heat better than aluminum.

Aluminum cables, on the other hand, are cheaper but less efficient. They have higher resistance and may wear out faster. If you're looking for long-term performance, copper is the better choice.

Note: While copper cables cost more upfront, they save you money in the long run by reducing energy loss and maintenance costs.

Voltage Drop Limits for Solar Systems

Voltage drop is the silent energy thief in your solar system. It happens when electricity loses voltage as it travels through the cable. If the drop is too high, your solar panels won't deliver their full power.

To keep voltage drop under control, you need to choose the right cable length and thickness. Experts recommend keeping the voltage drop below 3% for optimal performance. You can calculate this using online tools or formulas provided by solar equipment manufacturers.

Pro Tip: Shorter cables and thicker gauges help minimize voltage drop, ensuring your system runs efficiently.

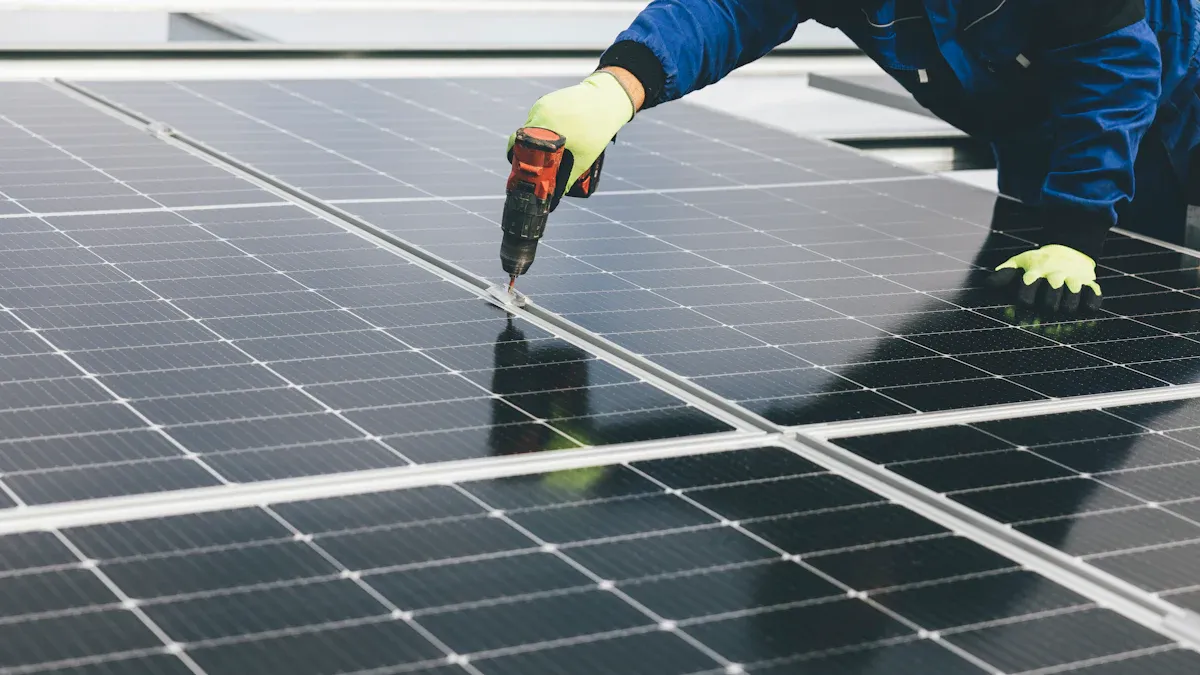

Tips to Minimize Cable Length Impact

Use Thicker Solar Cables

Thicker cables are your best friend when it comes to reducing energy loss. They carry electricity more efficiently because they have less resistance. If you use a thin cable, it struggles to handle the current, which leads to overheating and wasted energy.

When choosing a solar cable, pay attention to its gauge. A lower gauge number means a thicker cable. For example, a 10-gauge cable is thicker than a 14-gauge one. Thicker cables might cost more upfront, but they save you money in the long run by improving your system's efficiency.

Tip: Always check your solar panel specifications to match the cable gauge to your system's needs. This ensures you get the best performance without unnecessary energy loss.

Reduce Cable Length During Installation

Shorter cables mean less resistance and fewer voltage drops. When setting up your solar power system, try to minimize the distance between your solar panels, inverter, and battery. The shorter the cable, the less energy gets lost during transmission.

Think of it like taking a shortcut. A shorter path gets you to your destination faster and with less effort. The same principle applies to electricity. By reducing cable length, you help your solar panels deliver more power to your home or business.

Pro Tip: Plan your installation layout carefully. Place your inverter and battery as close to the solar panels as possible to keep cable lengths short.

Ensure Proper Connections and Quality Materials

Even the best cables won't perform well if the connections are poor. Loose or corroded connections can cause energy loss and even damage your system. Make sure all connections are tight and secure during installation.

The material of your solar cable also matters. Copper cables are more efficient and durable than aluminum ones. They handle heat better and lose less energy during transmission. Investing in high-quality materials ensures your system runs smoothly for years to come.

Reminder: Regularly inspect your solar cables and connections for wear and tear. Catching issues early can save you from costly repairs down the road.

Cable length plays a big role in how well your solar panels perform. Longer cables mean more resistance and voltage drop, which wastes energy.

To keep your system efficient:

• Choose the right cable material and thickness.
• Keep cables as short as possible.
• Ensure proper installation and secure connections.

Remember: A well-planned setup saves energy and boosts your solar system's reliability. By addressing these factors, you’ll get the most out of your investment. 🌞

FAQ

What happens if my solar cables are too long?

Long cables increase resistance and voltage drop, causing energy loss. This reduces your solar panels' efficiency and power output.

Can I use aluminum cables instead of copper?

You can, but copper cables are better. They’re more efficient, durable, and handle heat better. Aluminum is cheaper but less reliable for long-term use.

How do I calculate the right cable length?

Use online voltage drop calculators or consult your solar equipment manual. Keep cables as short as possible to minimize energy loss.

Tip: Always double-check your calculations to ensure optimal performance!
