What Is The Difference Between 4mm And 6mm Solar Cable

When choosing a Solar Cable, the cross-sectional area plays a key role. A 4mm cable works well for smaller solar systems with short distances. On the other hand, a 6mm cable handles higher currents, making it ideal for larger setups or installations where cables need to cover longer distances without significant power loss.

Key Takeaways

• Use a 4mm Solar Cable for small setups with short wires. It is light and fits well in small areas.
• Pick a 6mm Solar Cable for bigger setups or long wires. It carries more power and reduces energy waste.
• Always choose the right cable size for your system's power. This stops overheating and keeps it working well.

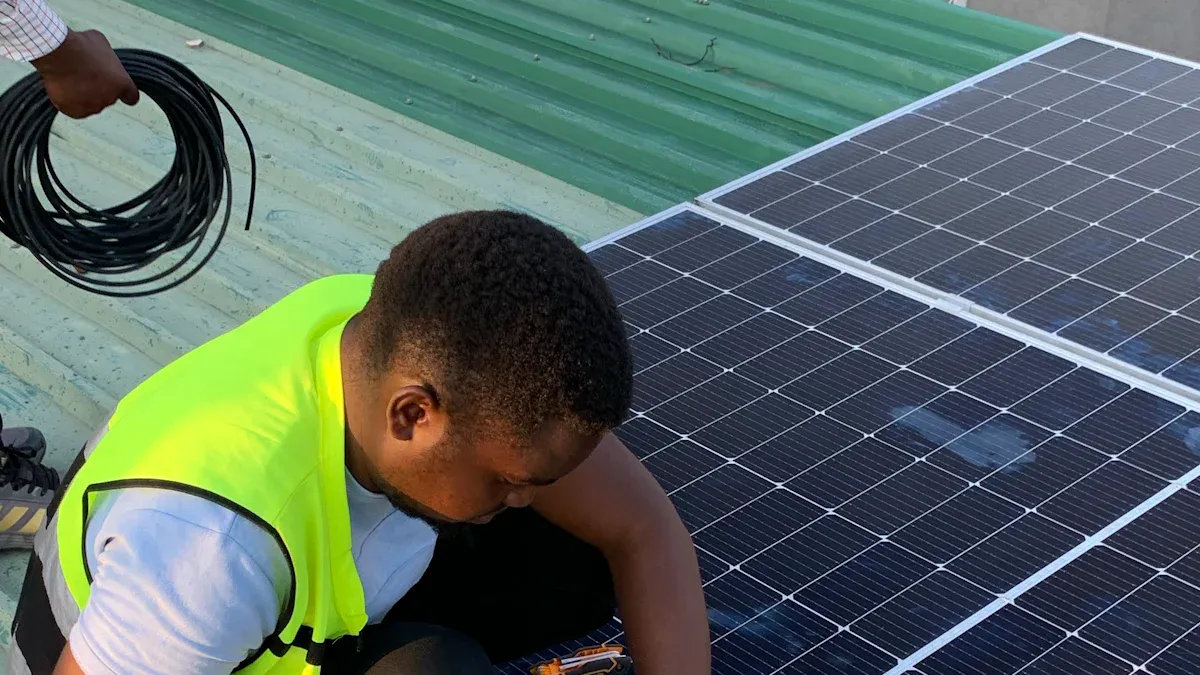

Technical Specifications of Solar Cables

Cross-Sectional Area and Dimensions

The cross-sectional area of a solar cable determines its size and ability to carry electrical current. A 4mm solar cable has a smaller cross-sectional area compared to a 6mm cable. This difference affects the amount of current each cable can handle. The 4mm cable is thinner and lighter, making it easier to install in compact spaces. In contrast, the 6mm cable is thicker and more robust, which makes it suitable for larger systems that require higher power transmission.

When choosing between the two, you should consider the physical space available for installation. A smaller cable may fit better in tight areas, while a larger one provides more durability and efficiency for demanding setups.

Current-Carrying Capacity of 4mm vs. 6mm Solar Cables

The current-carrying capacity is a critical factor in selecting the right solar cable. A 4mm cable can handle less current compared to a 6mm cable. For example, a 4mm cable typically supports up to 37 amps, while a 6mm cable can carry up to 50 amps. This difference makes the 6mm cable a better choice for systems with higher energy demands.

If your solar setup generates a lot of power, you should opt for a 6mm cable. It ensures that the system operates efficiently without overheating or causing energy loss.

Voltage Ratings and Voltage Drop

Voltage ratings and voltage drop are essential considerations for solar cables. Both 4mm and 6mm cables are designed to handle high voltage levels, but the 6mm cable performs better over long distances. Voltage drop occurs when electricity travels through a cable, and it increases with distance. A 6mm cable minimizes this drop more effectively than a 4mm cable.

For installations with long cable runs, you should choose a 6mm cable. It reduces energy loss and ensures that your solar system delivers consistent power output.

Applications of 4mm and 6mm Solar Cables

Typical Uses for 4mm Solar Cable

A 4mm solar cable works best for small-scale solar systems. You can use it in residential setups with low energy demands, such as powering a few lights or small appliances. It is also suitable for short-distance connections between solar panels and inverters. The thinner design makes it easier to install in tight spaces, like rooftops or compact solar arrays.

If you have a portable solar system, a 4mm cable is a practical choice. It provides enough capacity for basic energy needs while remaining lightweight and easy to handle. This cable is also cost-effective, making it ideal for budget-conscious projects.

Typical Uses for 6mm Solar Cable

A 6mm solar cable is designed for larger solar systems. It is perfect for commercial installations or residential setups with higher energy requirements. You can use it for long cable runs where minimizing voltage drop is essential. This cable is also a good option for connecting multiple solar panels in series or parallel configurations.

If your system includes high-power devices, such as water heaters or air conditioners, a 6mm cable ensures efficient energy transfer. Its durability and higher current-carrying capacity make it a reliable choice for demanding applications.

Examples of Solar Setups and Cable Choices

For a small home system with a few panels, a 4mm cable is sufficient. It handles short distances and low power needs effectively. In contrast, a large solar farm or a system with long cable runs benefits from 6mm cables. These cables reduce energy loss and support higher power output.

Imagine a scenario where you need to connect solar panels on a rooftop to an inverter located far away. A 6mm cable would perform better in this case, ensuring consistent power delivery. On the other hand, a portable solar kit for camping would work well with a 4mm cable due to its lightweight design.

Factors to Consider When Choosing Solar Cables

System Size and Power Output

The size of your solar system determines the type of cable you need. Larger systems generate more power and require cables with higher current-carrying capacity. If your setup includes multiple solar panels or high-power devices, choose a cable that can handle the load efficiently. For smaller systems, a 4mm solar cable often works well. Always match the cable size to your system’s energy output to avoid overheating or performance issues.

Cable Length and Voltage Drop

Cable length plays a major role in maintaining efficiency. Longer cables experience more voltage drop, which reduces the power delivered to your devices. To minimize this loss, select a thicker cable like a 6mm solar cable for installations with long distances between components. Shorter runs can use thinner cables without significant energy loss. Measure the distance carefully before choosing your cable size.

Tip: Use a voltage drop calculator to estimate the impact of cable length on your system’s performance.

Efficiency and Long-Term Performance

Efficiency is key to getting the most out of your solar system. Thicker cables, such as 6mm, offer better performance over time because they handle higher currents and resist wear. Thinner cables may work for smaller setups but could degrade faster under heavy loads. Investing in a durable cable ensures your system operates reliably for years.

Cost Considerations

Budget is another important factor. Thicker cables like 6mm cost more due to their higher material requirements. However, they provide better efficiency and durability, making them a worthwhile investment for larger systems. If you’re working on a smaller project, a 4mm solar cable offers a cost-effective solution. Balance your budget with your system’s needs to make the best choice.

The main difference between 4mm and 6mm solar cables lies in their capacity and application. A 4mm cable suits smaller systems with short distances, while a 6mm cable handles higher currents and longer runs.

Recommendation: Use 4mm cables for compact setups. Choose 6mm cables for larger systems or installations requiring extended cable lengths.

FAQ

What happens if you use the wrong cable size for your solar system?

Using the wrong cable size can cause overheating, energy loss, or reduced efficiency. Always match the cable size to your system's power and distance requirements.

Can you mix 4mm and 6mm cables in one solar setup?

Yes, but it’s not ideal. Mixing cables may lead to uneven power distribution. Use consistent cable sizes for better performance and reliability.

How do you calculate the correct cable size for your system?

Use a voltage drop calculator. Input your system's power output, cable length, and current to determine the appropriate cable size for optimal efficiency.

Tip: Always consult a professional if unsure about cable sizing. Proper installation ensures safety and long-term performance.
