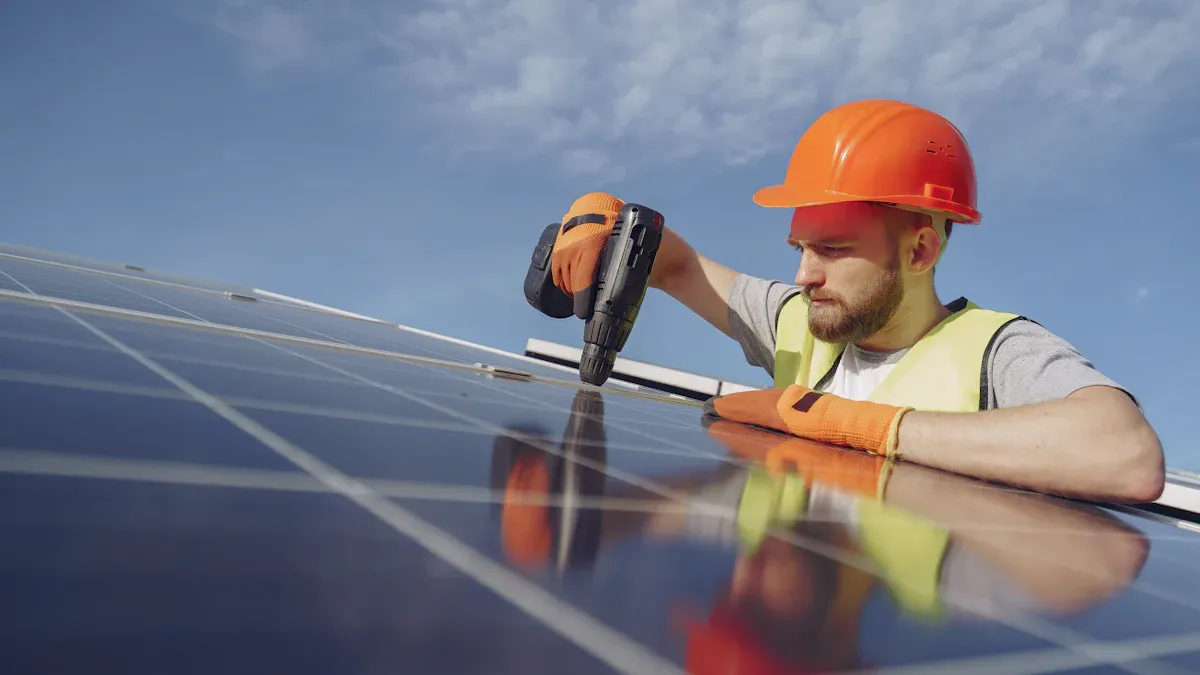

Can I use 6mm cable for solar panels?

You can use 6mm Solar Cable for many solar panel setups, but you need to pick the right size for safety and best results. The wrong cable can cause problems like overheating or wasted energy. Always check your setup to make sure you choose the safest option.

Key Takeaways

• 6mm solar cable is suitable for small to medium solar panel systems, especially those generating up to 5kW. Always check your system's power output before choosing a cable size.
• Long cable runs can cause voltage drop, leading to energy loss. Keep voltage drop below 3% for optimal performance. Use thicker cables for longer distances.
• Safety is crucial. Using the wrong cable size can lead to overheating, equipment failure, or even fire. Always follow the National Electrical Code and local regulations.

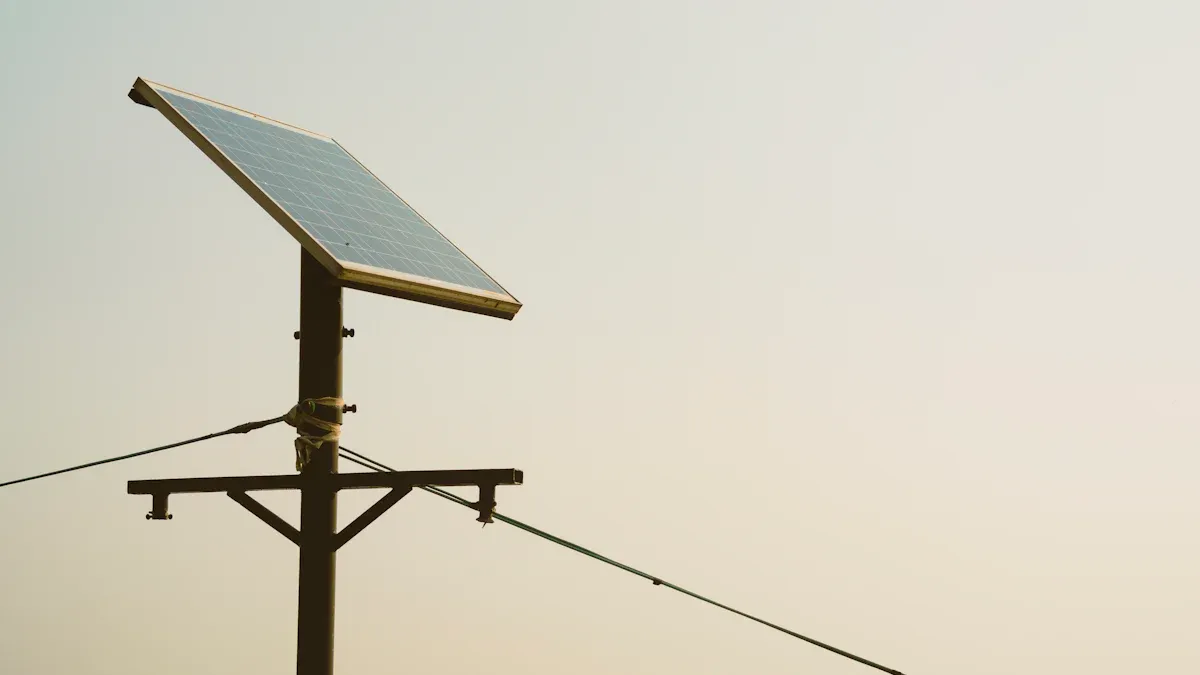

When Is 6mm Solar Cable Suitable?

Typical Applications for 6mm Solar Cable

You might wonder where you can actually use 6mm solar cable. Many homeowners and installers choose this size for small to medium solar panel systems. If you have a rooftop solar setup or a ground-mounted array for your house, 6mm solar cable often works well. You see it used in residential solar installations, off-grid cabins, and even small commercial projects.

Tip: Always check the manufacturer's recommendations for your solar panels before picking a cable size. This helps you avoid problems later.

Here are some common situations where 6mm solar cable fits:

• Connecting solar panels to a combiner box
• Wiring between the combiner box and the inverter
• Linking panels in a string for home solar systems

If you plan to install solar panels for a shed, tiny house, or a small business, 6mm solar cable usually handles the job. You get a balance of flexibility and safety for most everyday solar setups.

System Size and Power Output

The size of your solar system matters when you choose a cable. You need to match the cable to the amount of electricity your panels produce. If your system generates up to about 5kW, 6mm solar cable often works. For larger systems, you may need a thicker cable.

Let’s look at a simple table to help you decide:

System Size (kW)	Typical Current (A)	Is 6mm Solar Cable Suitable?
1-3	5-15	Yes
4-5	16-25	Usually Yes
6+	26+	No, use thicker cable

If your solar panels produce more power, they send more current through the cable. You want to make sure the cable can handle that current without overheating. If you use 6mm solar cable for a system that’s too big, you risk safety and lose efficiency.

Note: Always measure the distance between your panels and inverter. Longer runs need thicker cable to prevent voltage drop.

You can use 6mm solar cable for most home solar systems, but check your system’s power output and cable run length. This helps you get the best performance and keeps your setup safe.

Key Factors in Choosing Solar Cable Size

Current-Carrying Capacity of 6mm Solar Cable

You want your solar cable to handle the amount of electricity your system produces. A 6mm solar cable usually carries up to 40 amps, but you should always check the cable’s rating from the manufacturer. If your panels push more current than the cable can handle, the cable can get hot and cause safety problems. Always match the cable’s amp rating to your system’s needs.

Voltage Drop Considerations

Voltage drop happens when electricity travels through a cable and loses some power along the way. If you use a cable that’s too thin or too long, you lose more energy. You want to keep voltage drop below 3% for most solar panel systems. If you notice lights flickering or devices not working well, voltage drop might be the problem. Use a thicker cable or shorten the cable run to fix this.

Tip: You can use online calculators to check voltage drop for your solar cable. Just enter your system’s details and see if you need a thicker cable.

Distance Between Panels and Inverter

Longer cable runs mean more voltage drop. If your panels sit far from your inverter, you may need a thicker solar cable. Measure the distance before you buy your cable. For short runs, 6mm solar cable works well. For longer runs, consider moving up to 10mm or more.

Environmental and Installation Conditions

Where you install your solar cable matters. If you run cable outside, pick one that resists sunlight and water. If you install cable underground, make sure it’s rated for that use. High temperatures can lower the cable’s amp rating, so check if your area gets very hot. Always follow local rules for safe installation.

How to Assess If 6mm Solar Cable Is Right for Your System

Calculating Current and Voltage Drop

You want to make sure your cable can handle the current from your solar panels. First, check the total current your system will produce. You can find this by dividing your system’s total wattage by the voltage. For example, if you have a 2,000-watt system running at 100 volts, your current is 20 amps. Next, think about voltage drop. If your cable run is long, you lose more power. Try to keep voltage drop under 3%. This helps your system work better and keeps things safe.

Tip: Write down your numbers before you buy any cable. It makes the process much easier!

Using Reference Tables and Online Calculators

You do not have to guess if your cable is the right size. Many websites offer free voltage drop calculators. You just enter your system’s voltage, current, cable length, and size. The calculator tells you if 6mm is enough. You can also use reference tables. These tables show how much current different cable sizes can carry. Always double-check your numbers with these tools.

Example Scenarios for 6mm Solar Cable

Let’s look at some real-life examples:

• You have a 3kW solar system, and your inverter sits 10 meters from your panels. 6mm cable usually works well here.
• You want to power a small cabin with a 1.5kW system. The cable run is short. 6mm cable is a good choice.
• You plan a 6kW system with a long cable run. You probably need a thicker cable.

If you follow these steps, you can pick the right solar cable for your project.

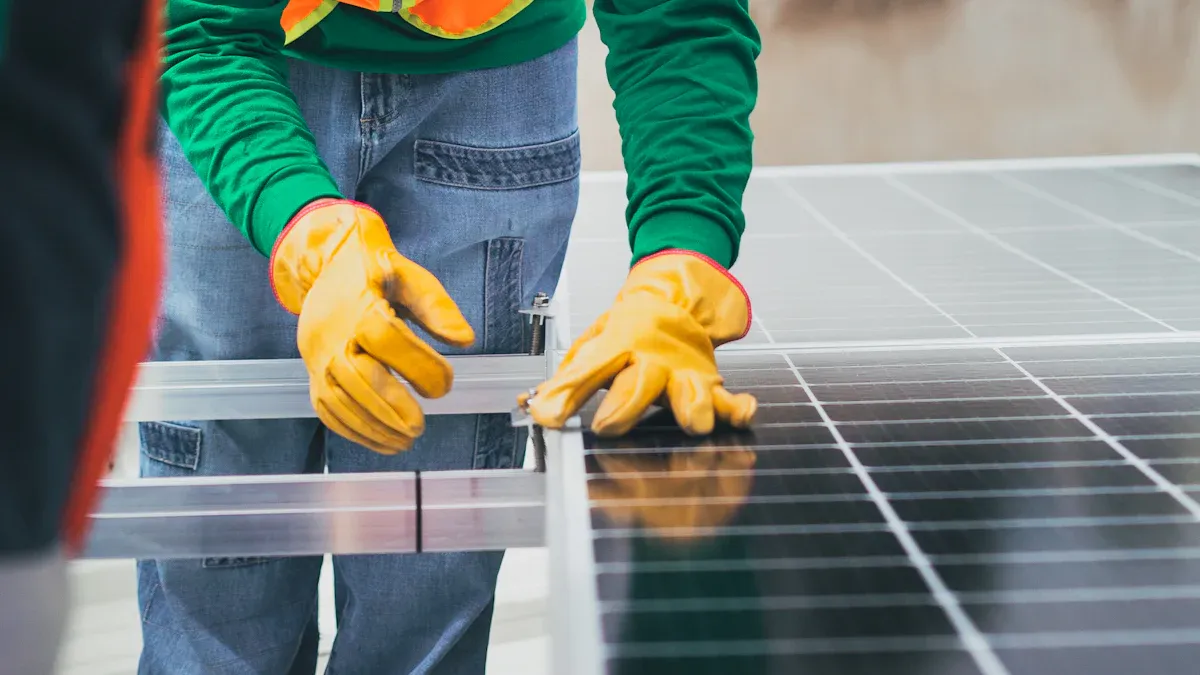

Safety, Regulations, and Compliance for Solar Cable

National Electrical Code (NEC) and Local Standards

You want your solar setup to be safe and legal. The National Electrical Code (NEC) gives you rules for wiring and safety. These rules help you avoid fires and other dangers. Many places in the U.S. follow the NEC, but your city or state might have extra rules. Always check with your local building department before you start. They can tell you if you need a permit or inspection.

Tip: If you follow the NEC and local rules, you protect your home and make it easier to sell later.

Here’s what you should do:

• Ask your installer if they know the NEC and local codes.
• Get the right permits before you install anything.
• Use only approved solar cable and parts.

Risks of Incorrect Solar Cable Sizing

Picking the wrong cable size can cause big problems. If your cable is too thin, it can get hot and even start a fire. You might also lose power, so your system will not work as well. Sometimes, your inverter or other parts can break because of bad wiring.

Here’s a quick look at what can go wrong:

Problem	What Might Happen
Overheating	Fire risk
High voltage drop	Less power to your home
Failed equipment	Costly repairs

Always double-check your cable size before you finish your project. Safety comes first!

Consequences of Using the Wrong Solar Cable Size

Safety Hazards

Choosing the wrong cable size for your solar panels can put you and your home at risk. If you use a cable that is too thin, it can overheat. Hot cables can melt their insulation. Sometimes, this even starts a fire. You do not want to take that chance.

Here are some dangers you might face:

• 🔥 Fire Risk: Overheated cables can spark and burn.
• ⚡ Electric Shock: Damaged cables can expose wires. You might touch them by accident.
• 🚨 Equipment Failure: Inverters and other parts can break if the wiring is wrong.

Note: Always double-check your cable size before you finish your solar project. Safety should come first every time.

Performance Issues and Energy Loss

Using the wrong cable size does not just create safety problems. It can also hurt your solar system’s performance. Thin cables cause more voltage drop. This means less power reaches your inverter.

You might notice:

• Your solar panels do not produce as much energy as they should.
• Lights flicker or devices run poorly.
• Your system wastes energy, so you pay more for electricity.

Here’s a quick look at what happens:

Wrong Cable Size	What You See	What You Lose
Too Thin	Less power output	Higher energy loss
Too Thick	Harder to install	Extra cost

If you want your solar panels to work their best, pick the right cable size from the start. This keeps your system safe and efficient.

---

You can use 6mm solar cable for many home solar setups, especially smaller systems with short runs. Always check your numbers and follow safety codes. If you feel unsure, talk to a solar expert.

Remember: The right cable keeps your system safe and running strong!

FAQ

Can you use 6mm cable for all solar panel systems?

You can use 6mm cable for many home systems. For big setups or long cable runs, you need a thicker cable for safety and better performance.

What happens if you use a cable that is too thin?

A thin cable can overheat. You might see less power from your panels. In some cases, it can even cause a fire.

How do you know if 6mm cable is enough for your setup?

Use an online calculator or check a reference table. Enter your system’s size and cable length. This helps you pick the right cable every time.
