Choosing the Right solar cable Size

Choosing the right Solar Cable size helps you keep your system safe and efficient. You need to look at current, voltage, cable length, and how much voltage drop you can allow. > Correct sizing stops power loss and overheating. A step-by-step method makes this task simple for you.

Key Takeaways

• Choose a solar cable that matches your system’s current and voltage to keep it safe and efficient.
• Keep cable lengths short and use thicker cables for longer runs to reduce power loss from voltage drop.
• Add a safety margin by selecting cables that handle 25% more current than your system’s maximum for extra protection.

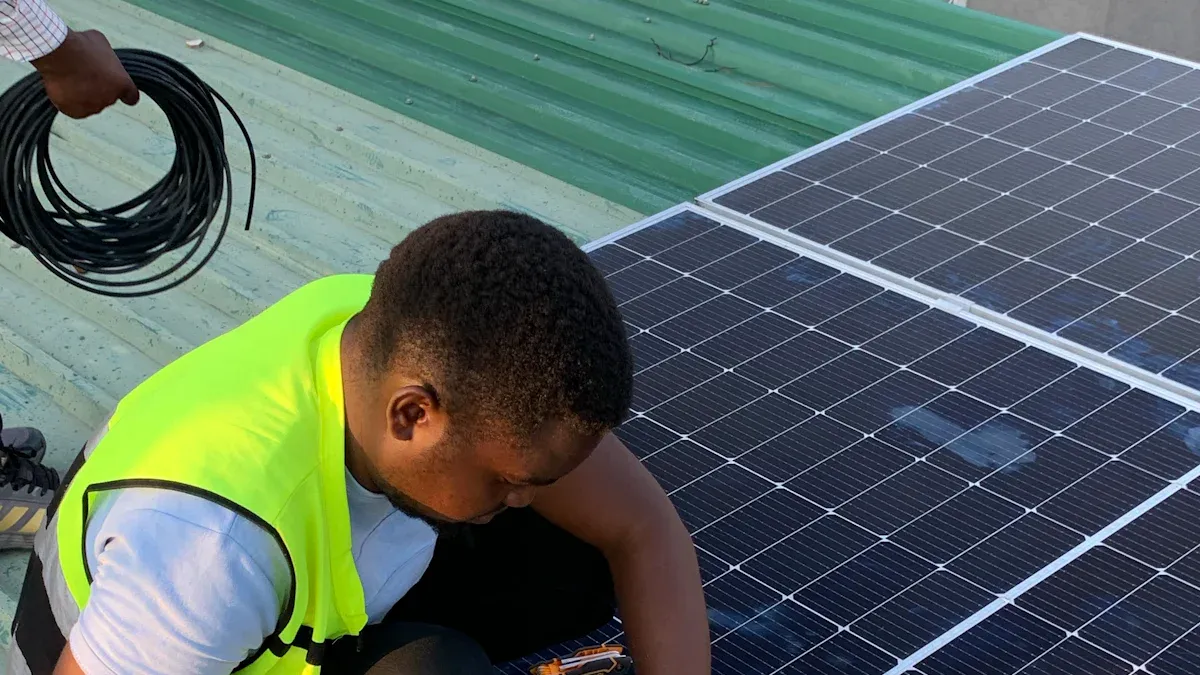

Key Factors for Solar Cable Sizing

System Current and Voltage

You need to know your system’s current and voltage before you pick a solar cable. The current tells you how much electricity flows through the cable. The voltage shows how much electrical pressure pushes the current. If you use a cable that is too small for your current, it can get hot and unsafe. Always check the maximum current your solar panels will produce. You can find this information on the panel’s label or in the manual.

Cable Length and Voltage Drop

The length of your cable matters a lot. Longer cables cause more voltage drop. Voltage drop means you lose some power as electricity travels through the wire. If the voltage drops too much, your system will not work well. Try to keep your cables as short as possible. If you need a long cable, you should use a thicker one.

Tip: Most experts suggest keeping voltage drop below 3% for best performance.

Safety, Efficiency, and Environmental Considerations

Safety comes first when you choose a solar cable. A cable that is too thin can overheat and cause fires. You also want your system to run efficiently. Thick cables waste less energy. Think about where you will install the cable. Outdoor cables need to handle sun, rain, and temperature changes. Pick a cable that is rated for your environment. This helps your solar system last longer and work better.

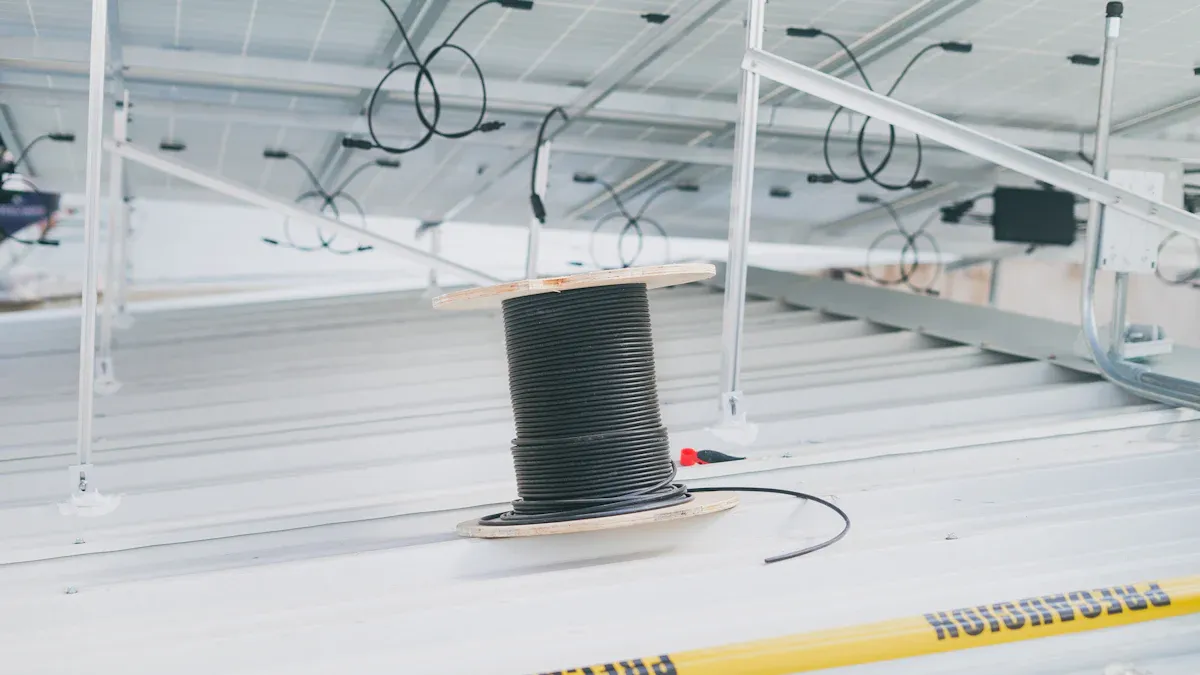

Step-by-Step Solar Cable Selection Guide

Identify System Current and Voltage

Start by finding out how much current and voltage your solar system will use. You can check the label on your solar panels or look in the manual. Write down the voltage (V) and the current (A) for your system. This information helps you choose the right solar cable for your needs.

Tip: Always use the highest possible current value. This keeps your system safe if your panels produce more power on sunny days.

Calculate Maximum Current

Next, you need to figure out the maximum current your system will handle. If you connect panels in series, the current stays the same as one panel. If you connect them in parallel, add up the current from each panel. Use this number to make sure your solar cable can carry enough electricity without getting too hot.

• For series: Use the current of one panel.
• For parallel: Add the current of all panels.

Measure Cable Length and Set Voltage Drop Limit

Measure the distance from your solar panels to your inverter or battery. The longer the cable, the more voltage drop you will have. Most experts suggest keeping voltage drop below 3%. You can set your own limit, but lower is better for efficiency.

Note: Shorter cables help you save energy and money.

Use Voltage Drop Charts or Formulas to Choose Wire Gauge

Now, use a voltage drop chart or a simple formula to pick the right wire gauge. The chart tells you what size wire you need for your current, voltage, and cable length. You can also use this formula:

Wire Size = (2 × Length × Current × Resistance) / Voltage Drop

You can find resistance values for different wire sizes online. If you feel unsure, use a voltage drop calculator. This step helps you pick a solar cable that keeps your system running smoothly.

Factor in Temperature and Installation Conditions

Think about where you will install your solar cable. High temperatures can make cables less efficient. If you run cables outside or in hot places, you may need a thicker wire. Also, check if your cable will face sunlight, rain, or chemicals. Pick a cable rated for your environment to keep your system safe and long-lasting.

Always check the cable’s temperature rating before you buy.

Add a Safety Margin When Selecting Solar Cable

Add a safety margin to your final choice. Many experts suggest picking a cable that can handle 25% more current than your system’s maximum. This extra margin protects your system from sudden power spikes or future upgrades. It also helps your solar cable last longer.

• Example: If your system’s max current is 10A, choose a cable rated for at least 12.5A.

Safety margins give you peace of mind and help prevent problems.

Choosing the right solar cable keeps your system safe and efficient. Double-check your numbers and add a safety margin for peace of mind. If you feel unsure, ask a professional or check local codes. You protect your investment and ensure reliable power for years.

FAQ

What happens if you use a cable that is too thin?

Thin cables can overheat and cause fires. You may lose power. Always choose the correct size for safety.

How do you know which solar cable is for outdoor use?

Look for cables labeled "UV resistant" or "outdoor rated." These cables last longer in sun and rain.

Can you use regular electrical wire for solar panels?

• You should not use regular wire.
• Solar cables have special insulation for outdoor and high-voltage use.
